Conveyor Picking System can be customized according to your needs. The following are standard styles for your reference.

Our conveyor picking system can configure box handling systems to meet almost any application need, including elevated and large part transfer, box transport with roller conveyors, and integrating these transport options with box filling capabilities.



1.Conveying equipment

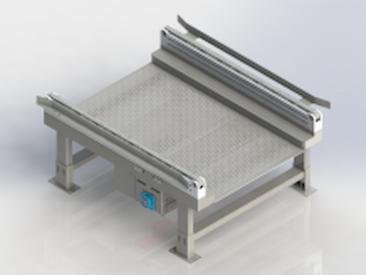

(1)Chain Conveyor

Chain center distance

Pallet size-150mm

Guardrail inner dimensions

Pallet size+20mm

Conveying surface height

H≥350mm

Device length

L900~6000mm

Motor Power

0.37~0.75KW

Transfer speed

12,16,18m/min

Carrying capacity

1200kg/m

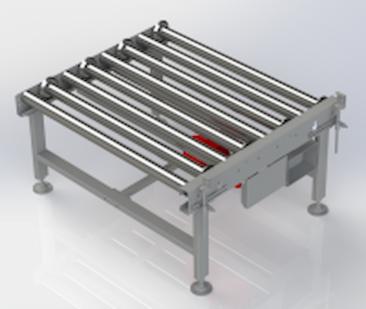

(2)Roller Conveyor

Roller center distance

134.9~151.8~166.7mm

Guide inner dimensions

Pallet size+20mm

Conveying surface height

H≥350mm

Device length

L900~6000mm

Motor Power

0.37~0.75KW

Transfer speed

12,16,18m/min

Carrying capacity

1200kg/m

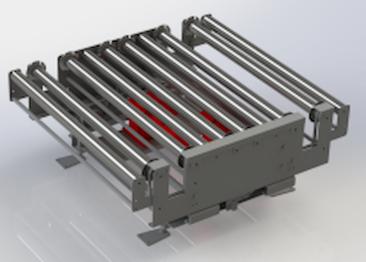

(3)Jacking Transfer Machine

​​

Roller center distance

134.9~151.8~166.7mm

Guide inner dimensions

Pallet size+20mm

Conveying surface height

H≥450mm

Device length

Chain conveyor inner size - 60mm

Motor Power

Conveying 0.37kw/B and lifting 0.75kw/B

Transfer speed

12,16,18m/min

Jacking time

2.3s single trip

Carrying capacity

1200kg/m

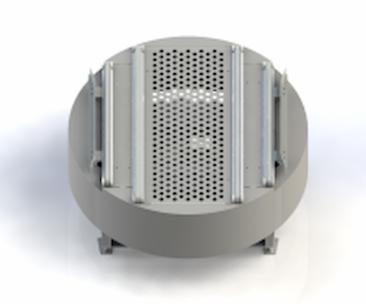

(4)Rotary Conveyor

Roller center distance

134.9~151.8~166.7mm

Guide inner dimensions

Pallet size+20mm

Conveying surface height

H≥550mm

Rotation diameter

Customized according to pallet size

Motor Power

Transmission 0.37kw/B Rotation 0.75kw/B

Transfer speed

12,16,18m/min

Spin time

5.2s  90°

Carrying capacity

1200kg/m

2.Testing Equipment

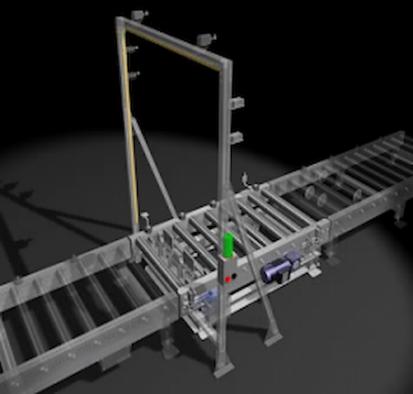

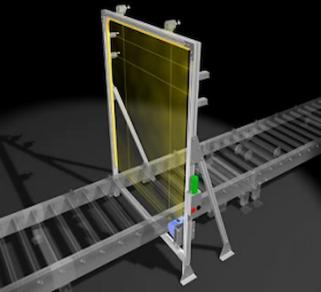

(1)Shape inspection equipment

The size detection device is based on the length, width, and height of the storage unit size and is set according to the allowable error. Then, an infrared photoelectric scan is performed on the length, width, and height dimensions of the stored storage unit to determine whether it exceeds the setting.

If it does not exceed the setting, the size is deemed to be qualified and is allowed to be stored. If it exceeds this setting, it will be regarded as a "size-unqualified" pallet in the system and needs to be exited and the out-of-tolerance situation (such as height or length direction, etc.) reported to the system.



Control method

PLC automatically controls detection and returns signals

Data communication

Fixed communication cable

Structure

Aluminum alloy profile bracket, detection photoelectric tube





(2)Weighing and testing equipment

Each pallet entry port should be equipped with pallet weighing detection. When the pallet is placed at the entry port, the weight of the material should be automatically measured and transmitted to the information system through the interface.

If it is found that the difference between the actual weight of the item and the set weight exceeds a certain range or ratio, the system will alarm and refuse to enter the warehouse, waiting for manual processing or confirmation.



Accuracy level

Level III

Weighing range, kg

0~1500kg

Allowable error

±3e

Graduation valuee, kg

0.5
