Two-Way Radio Shuttle Car Semi-Automation Storage System
Semi-Automated Warehousing System
Two-Way Radio-Controlled Pallet Shuttle System
Storage Automation with Two-Way Shuttle
Two-Way Shuttle Car for Warehousing

Two-Way Radio Shuttle Car Semi-Automation Storage System

This high-density, deep storage solution utilizes semi-automated shuttles to efficiently store and retrieve palletized goods within the racking system. Forklift trucks place the shuttles in the racking, streamlining the process for drivers. They only need to bring pallets to the entrance of the racking channels, allowing the shuttle to transport pallets to their final positions while the forklift driver prepares the next pallet. This approach enables drivers to handle more pallets at a faster pace, thereby increasing productivity and reducing operational costs.

The semi automated warehouse Pallet Shuttle system is a cost-effective and time-saving semi-automated solution designed for high-density storage, ideal for managing goods within channels, similar to setups seen in drive-in or pallet-flow configurations. By eliminating the need for forklift trucks to enter the aisles, Pallet Shuttle presents a highly efficient alternative to traditional live storage and drive-in racking methods.

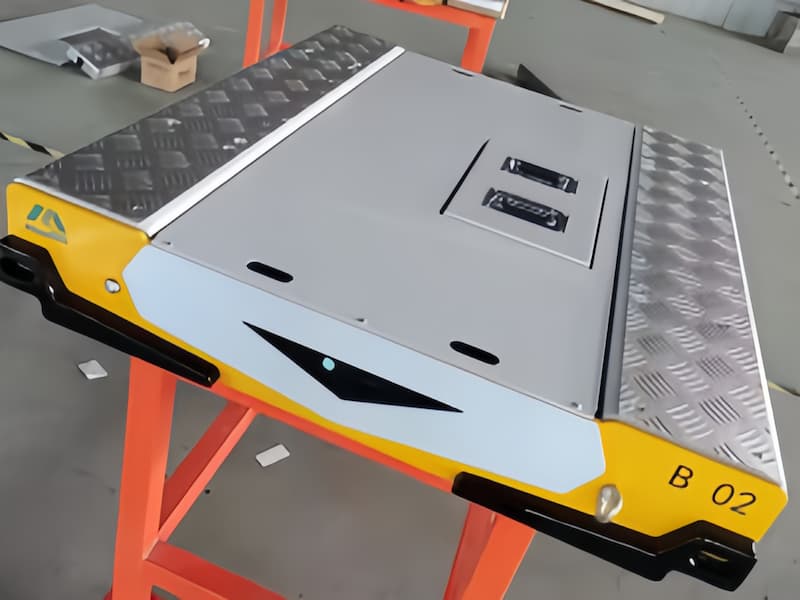

The pallet shuttle car is the core storage device of adense storage solution,powered by batteries,It can realize the round-trip transportation of pallet goods in the roadway. It is controlled by remote control or net working.It is applicable to the project type of single SKU and multiple pieces which can realize realize two modes: first in first out and first in last out.





The shuttle is a high-tech product developed by Kingmore Smart and has completely independent intellectual property rights. Advanced product design, high-end configuration, powerful function, sophisticated assembly. The core photoelectric components are all international first-line brands, with strong anti-interference ability and high stability





Uses


Shuttle storage system is an advanced warehouse storage management mode, with the characteristics of high storage density, high access efficiency, but also can achieve FIFO and FIFO functions. The shuttle storage system consists of shuttle special shelves and shuttles.

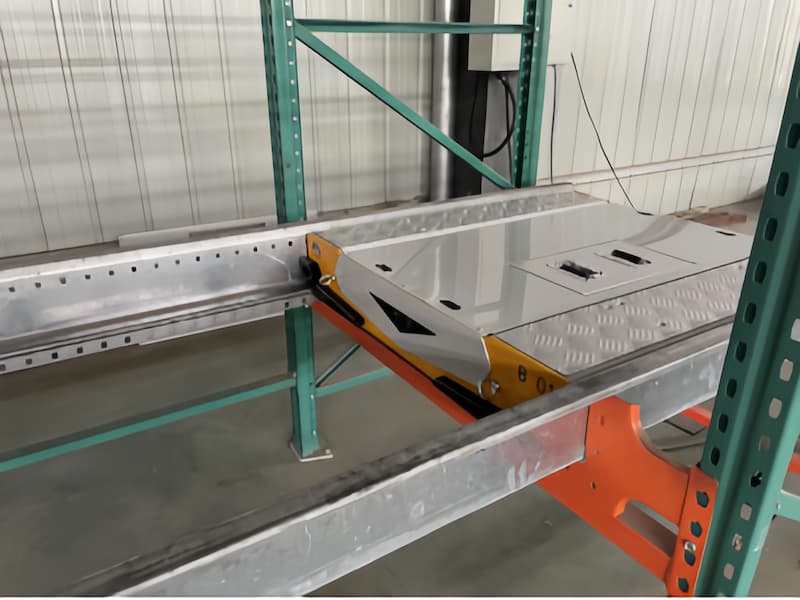

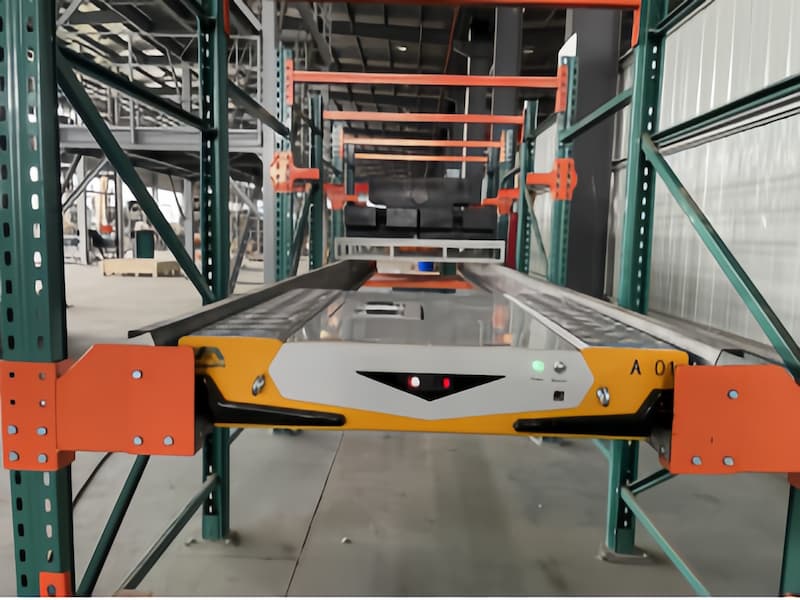

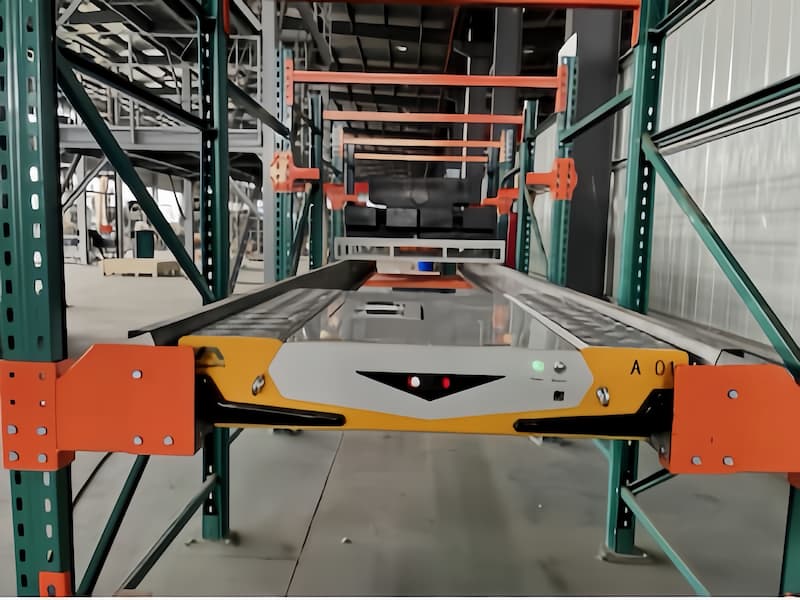

Shuttle is the core automation equipment used for dense storage stereo warehouse. Manual forklift truck will place it in the cargo lane, and the operator will complete the operation of cargo access through remote controller. The first position in the cargo lane is where the forklift trucks access the goods.



Characteristic


a.High compatibility: the shuttle size is adjustable for pallet size.

b.Multiple controllable: one handheld terminal can control multiple pallet shuttles.

c.Safe and reliable: multiple sensors equipped in shuttle make ensure the safe operation.

d.High density storage: use independently or in combination with other shuttles to make full use of the upper space.



Technical parameters


NO.

Major technology categories

Reference value

1

Carrying capacity(kg)

Max=1500Kg

2

Full-load walking speed(m/min)

48

3

No-load walking speed(m/min)

60

4

Lift height(mm)

40

5

Lift time(s)

3

6

Distance between the pallet and the rail in the upper position(mm)

Min=15

7

Pallet type

“川”-shape

8

Pallet deflection(mm)

Max=15

9

Pallet distance(mm)

Min=50

10

Walking positioning accuracy(mm)

±5

11

Power supply mode

Lithium battery pack

12

Battery capacity(AH)

32

13

Times of battery charge and discharge

≧2000

14

Operating time(H)

8(discontinuous)

15

Battery Weight(kg)

Max=20

16

Road wheel

High performance PU

17

Operating noise(db)

<60

18

Environment temperature(oC)

0~45



1.Available pallet specifications: W1100-1250*D800-1100mm

2.Length: 1072mm/1172mm/1272mm

3.Width: 860mm/960mm/1060mm

4.Height: 185mm

5.hoisting stroke: 35mm

6.Pallet type:“川”shaped pallet,“田”shaped pallet

7.Pallet weight: 1000~1500kg

8.Self weight of device: 280~340kg

9.Running speed at empty load: 60m/min

10.Running speed at full load: 48m/min

11.Acceleration: Maximum acceleration 0.4 m/s²

12.Travelling drive motor: DC48V

13.Jacking motor: DC48V

14.Operating ambient temperature: 0~45°

15.Program controller: SIEMNS PLC

16.Control loop voltage: DC48V

17.Power energy: lithium battery

18.Battery charge and discharge times: More than 1000 times

19.Communication mode: Industrial remote control 433MHz/WiFi 2.4/5.8ghz

20.Remote control mode: Wireless remote control

21.Braking mode: Servo motor, servo controller



Storage mode


The two-way shuttle car can be used for intensive storage of pallets, and it needs to be combined with the shuttle car rack, stacker or forklift for pallet storage. Suitable for storage of large quantities of materials in a single sku.
