FLOW RACK

FLOW RACK

Mar 20, 2024

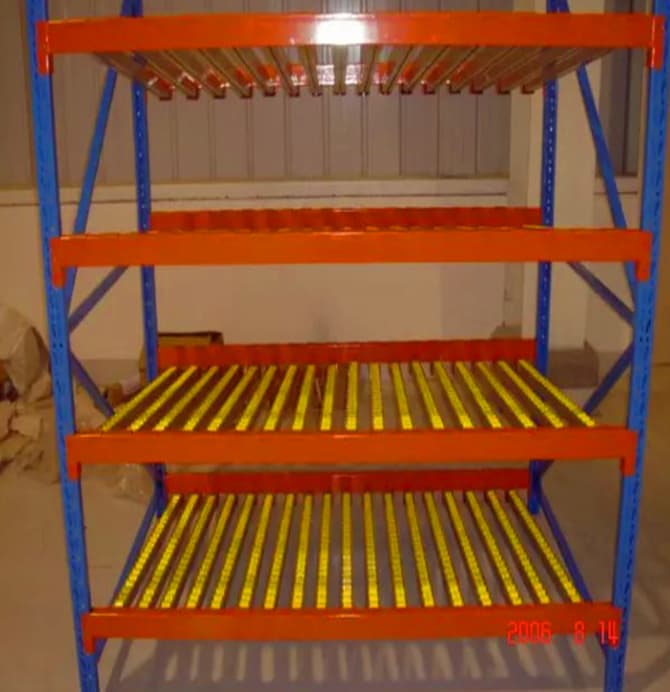

The runner shelf is a lightweight first-in-first-out shelf. The goods are put in from the back of the shelf and taken out from the front. It is generally used in conjunction with standard plastic turnover boxes or cartons, and the space utilization rate reaches 50%. Widely used in warehouses, factory assembly workshops and various distribution centers. This shelf can be used independently as one unit or in combination with multiple units. It has the following characteristics:

1. The adjustable spacing of each layer is 50mm, and can also be fine-tuned through hanging pieces; 2. The minimum recommended spacing is: the height of the cargo (turnover box) + 200mm, and it can also be adjusted to an integer multiple of 50mm as needed; 3. The fluent bar is determined according to the L and quantity N of the turnover box, then the length of the fluent bar is N*L+100mm; 4. The tilt angle is adjustable, and the standard is about 5 degrees; 5. The fluent bar format is D13, D28, D28F ( With ribs); 6. Shelf surface treatment: heat-curing powder spraying, standard color is sky blue, color can also be selected according to customer needs; 7. Special design can be made according to customer requirements;



The width can be determined according to the external dimensions of the customer's turnover box: length (D) × width (W) × height (H). Width = slide × (W + 50) + 20 + column. The total load of each unit is ≤ 1500kg;

Add: Jiangsu Kingmore Storage Equipment Manufacturing Co., Ltd
